Aluminium Windows
GT 70 S Open-In Window
Replicating the fine sightlines and traditional appearance of steel windows on new and refurbishment projects, Novastruct's GT 70 S Open-In Window combines elegance with the long-life/sustainability benefits of aluminium, creating an attractive heritage aesthetic, ready for the challenges of contemporary and future structures.
Product overview
Available in tilt-before-turn and turn-only configurations, GT 70 S offers accredited security and optimum thermal efficiency.
Accommodating glazing up to 64mm, GT 70 S can also be configured to create a unique sculptured appearance.
GT 70 S is fully backed by Novastruct’s industry-leading support, ready to help you deliver its full advantages on your next project.
Product details
Technical details
Performance
Key features
Arrangements & Weight Limitations
Features

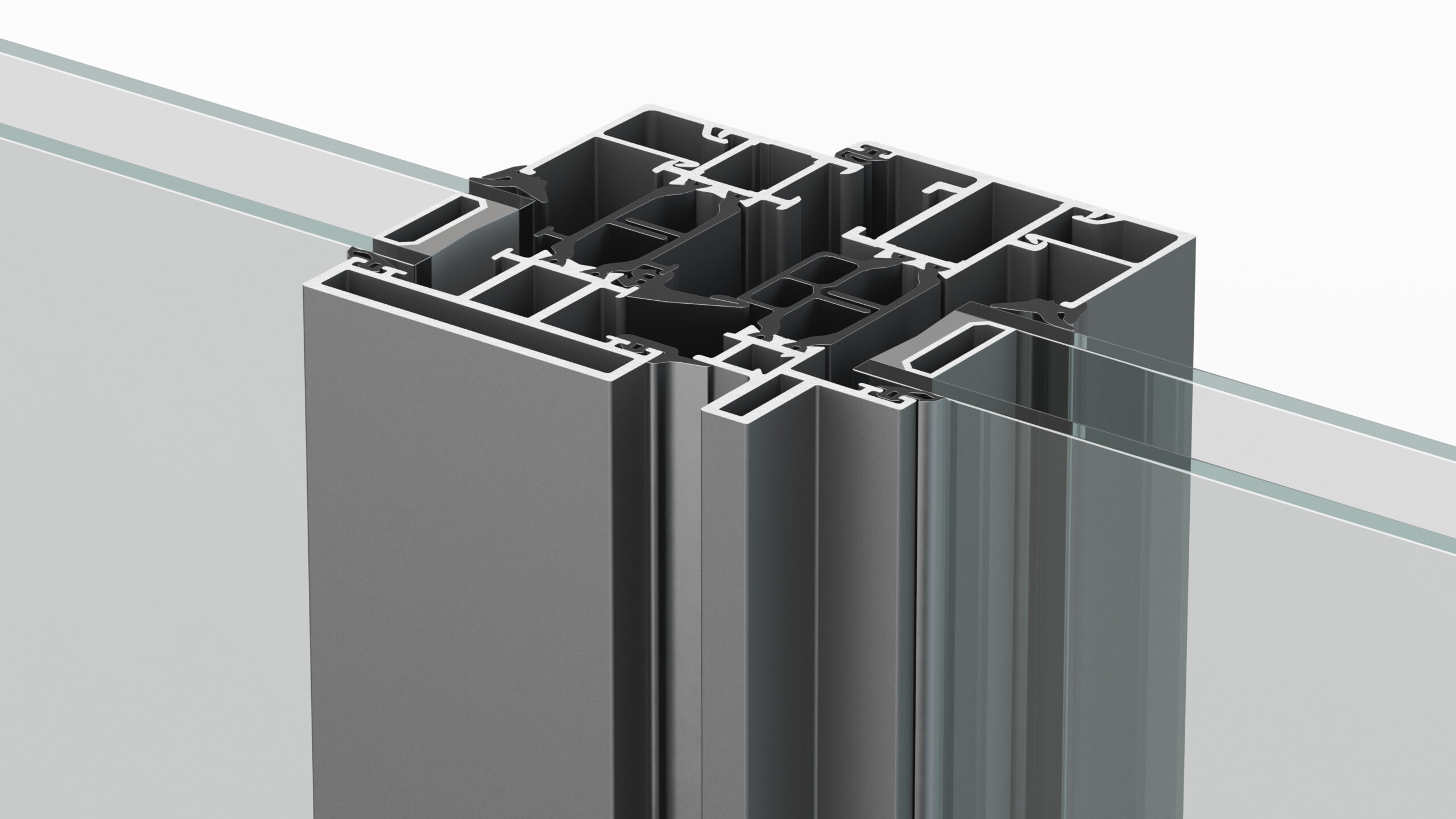

The GT 70 S uses a multi-chamber thermal break core ensuring thermal efficiency and full compliance with Approved Document L and Scottish Building Standards Part 6
Independently Weather Performance Tested to BS EN 12207: 2016:
Air Infiltration (BS EN 12207): 600 Pa
Watertightness (BS EN 12208): 600 Pa
Wind Resistance (BS EN 12210): 2400 Pa (Windload)* and 1750 Pa (Safety)*
* Dependant upon correct mullion and transom selection to suit span and spacing per project.
- Independently tested to PAS 24:2016
- Box bead option for enhanced security
Suitable for demanding applications
- Maximum size 2400mm
- Fixed Light 300KG
- Side Hung 130KG
- Bottom Hung 50KG
- TBT 50KG
- Turn-Tilt 130KG
- French Casement 130KG
- Infill Width 60mm
- A range of structural and coupling mullions available
- Special bevelled beads, or feature caps, add a unique sculptured appearance to the building
- BRE Green Guide ‘A’ Rating
Additional information
- Framing construction incorporates a multi-chamber thermal break core ensuring thermal efficiency and full compliance with Document L
- All frames have mechanically jointed and adhesive corners
- Installation can be by the direct fix method or by twist-in fixing lugs
Proven performance
