Aluminium Windows

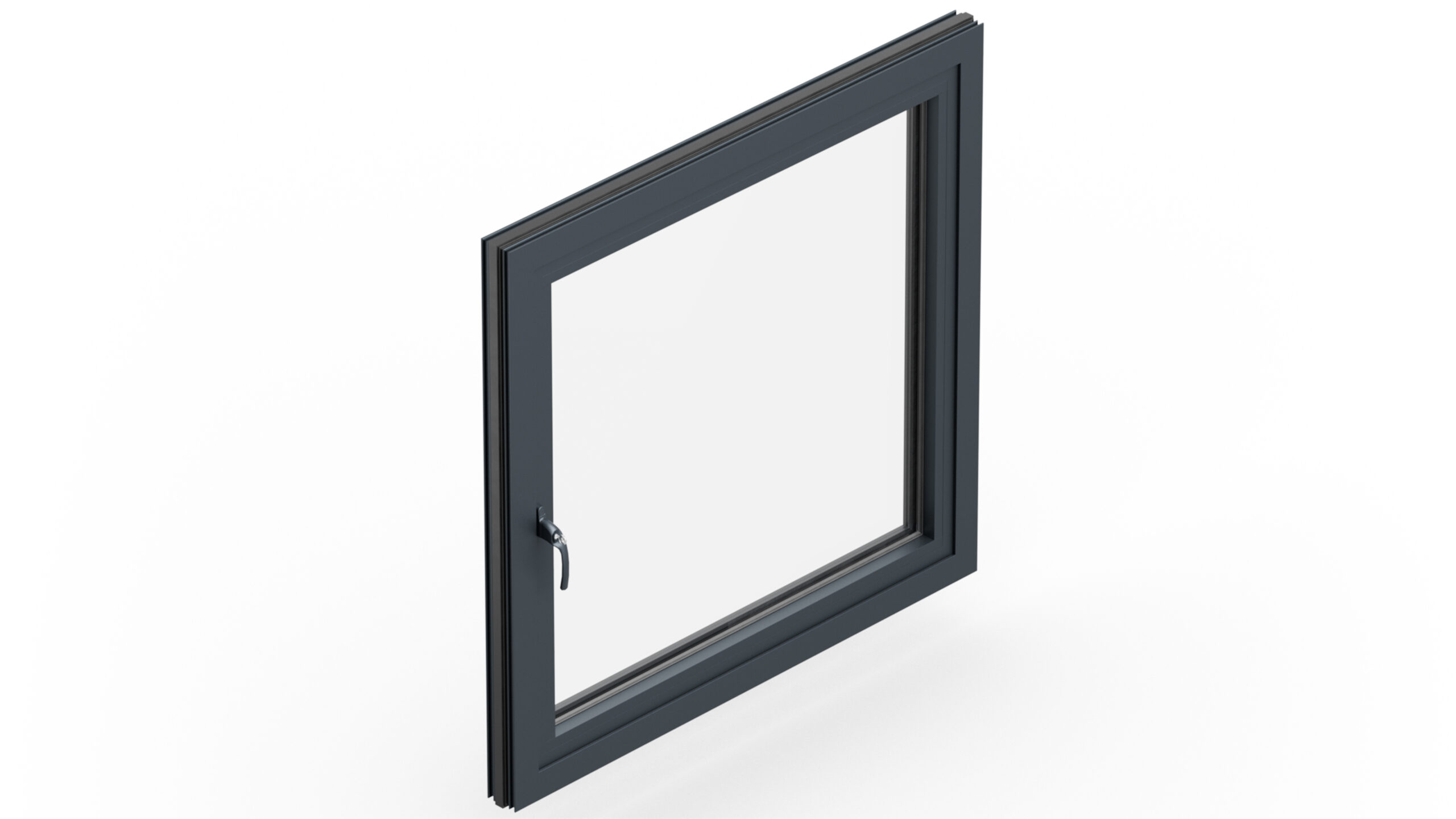

WSX 720 Open Out Casement Window
Novastruct's WSX 720 Open Out Casement Window offers you a complete window solution with design flexibility and high-level security and sustainability credentials.
Product overview
Using Novastruct’s proven and tested Reflex thermal break technology, WSX 720 enables a precise match to demanding project insulation specification and meets Lifetime Homes standards for accessibility, and adaptability.
With the long-life and recyclability advantages of aluminium, WSX 720 comprises a variety of window configurations encompassing casement, tilt-turn, parallel and accessibility options.
Renowned Novastruct support means we’re with you every step of the way to achieve your most ambitious window design aspirations on commercial, public, education, healthcare, residential and logistical projects.
Product details
Technical details
Performance
Key features
Arrangements & Weight Limitations
Features
Available in a range of increasing levels of thermal performance.
- U-Value range 1.4 – 2.0 W/m²K
- Reflex thermal break technology
- Available in a range of increasing levels of thermal performance, starting with the highest: WSX 720 HI ReflexPlus, the WSX 720 HI Reflex, WSX 720 HI and WSX 720HW.
Independently tested weather performance
- Windload Class AE2400
- Air Permeability Class 4
- Watertightness Class 7A
Independently tested to PAS 24:2016.
- Enhanced security locking
- Box beads
- Secured By Design accredited
Suitable for demanding applications
- Maximum size 2500mm
- Fixed Light 300KG
- Top Hung 130KG
- Side Hung 52KG
- Infill Width 60mm
Projected top hung, side hung or butt hinge options offer exceptional versatility.
- Two options for suited hardware, handle and locking options
- Choice of restrictors in-line with Document M and HTM 55 regulations/BS 8213 (100mm initial opening).
- Internally or externally glazed
Specify with complete confidence.
- Offset handle position for side hung windows.
- Safety in use for ‘Lifetime Homes’ Specification
- Folding Openers with Link Bars
- BRE Green Guide ‘A’ Rated Frame
Additional information
- Trickle Ventilation option to help meet Document F requirements
- Dual colour finishes for design flexibility
- Choice of muntins and coupling mullions
Proven performance
